BMW RDC TPMS Sensor Set – Pre-Coded (4 Sensors, F & G Chassis)

Description

BMW RDC TPMS Sensor Set — 4 pre-coded tire pressure sensors ready to install. No coding or programming needed. Direct replacement for all F-Series and G-Series BMWs. OEM-quality sensors with correct BMW frequency. From $329 USD at M-TRI UPGRADE.

Sound familiar?

• Your tyre pressure light has been on for months and iDrive just shows a vague warning instead of actual numbers per wheel.
• You bought your F30, F10, or G30 used and the previous owner swapped to aftermarket wheels — now the RDC sensors are missing entirely.
• Your BMW dealer quoted you over $600 to supply and program four sensors, and that’s before labour.
• You fitted new winters last season and the shop couldn’t match your existing sensors, so you’re running blind on tyre pressure all winter.
• The iDrive screen shows one or two wheels fine but the others read “—” because someone mixed sensor generations.
• Your RDC module throws a fault code and you’ve already ruled out the tyres — the sensors themselves are just dead.

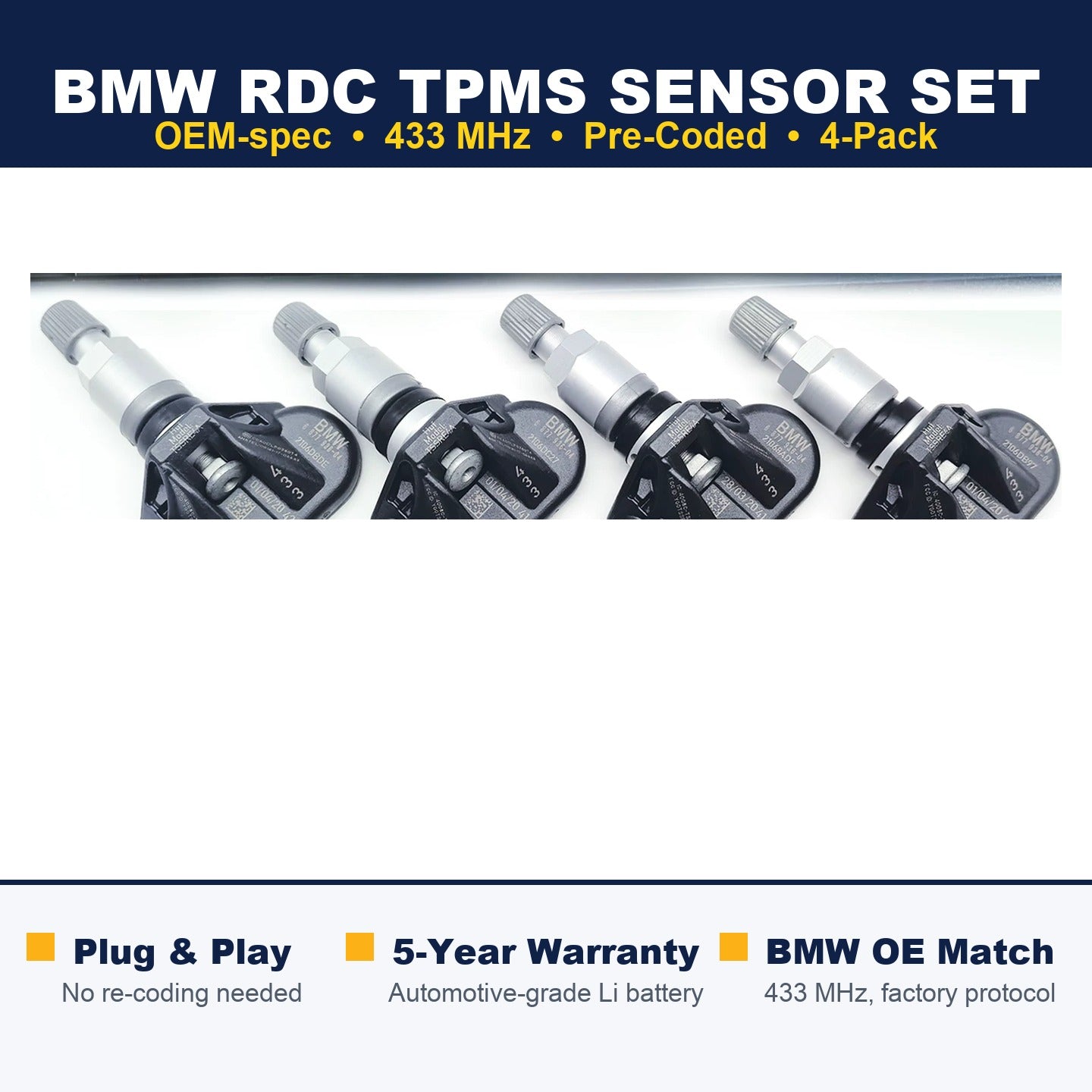

BMW RDC TPMS Sensor Set — OEM-Spec, Pre-Coded (4 Sensors)

A complete set of four BMW-spec RDC tyre-pressure sensors (433 MHz) for F-chassis and G-chassis BMWs. Pre-programmed for direct fitment — no scan-tool reflash, no dealer visit, no third-party adapter.

What You Get

• 4× BMW-spec RDC tyre pressure sensors
• Pre-coded to your chassis
• OE-grade Huf / TSSREA module
• 365-day warranty

Why This Set

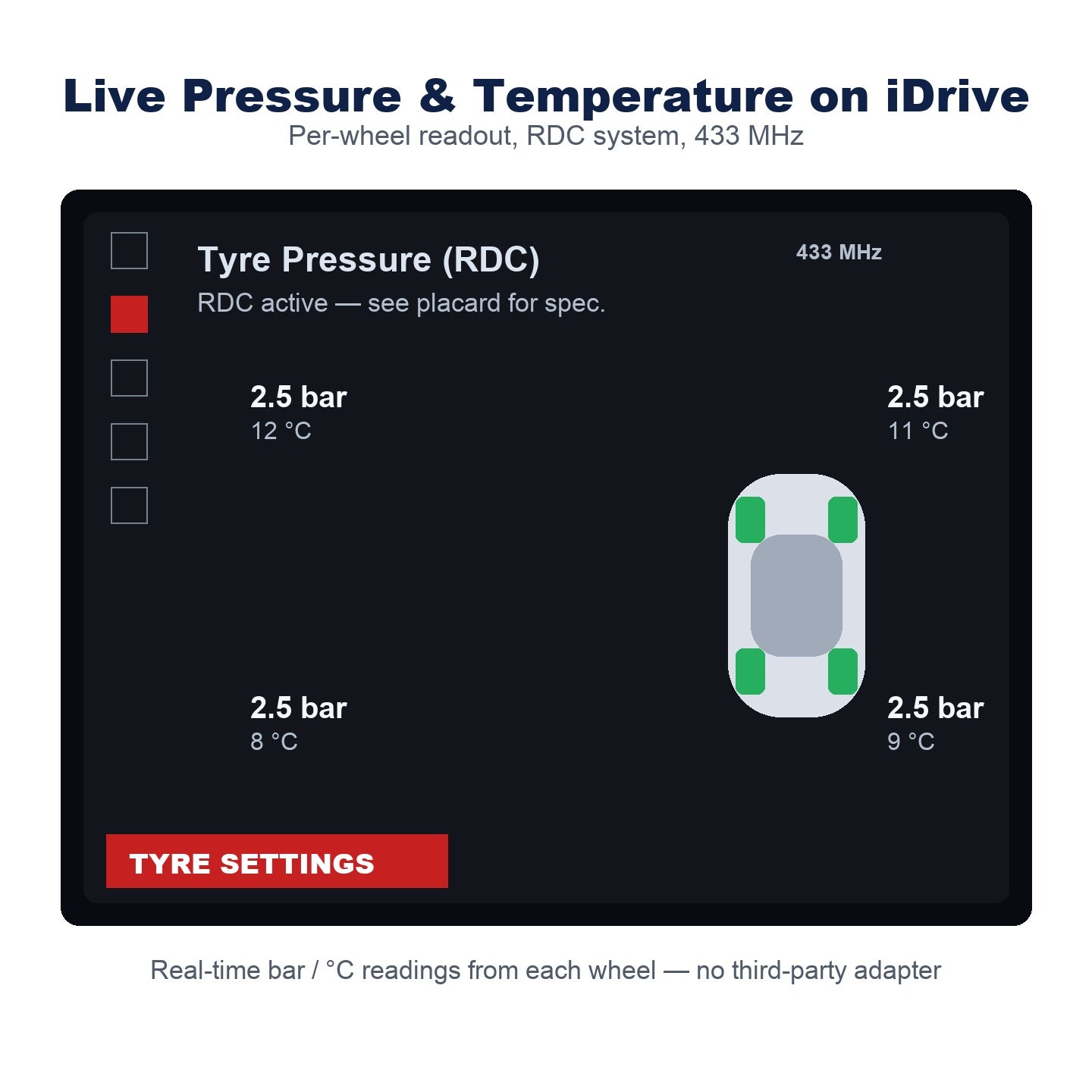

• Independent 4-Wheel Read — per-wheel pressure & temperature shown directly on iDrive; no delay, no false alarms.
• Plug-and-Play Pre-Coding — pre-programmed to your chassis variant; no scan-tool reflash needed.
• Automotive-Grade Lithium Battery — high/low-temp tolerant, up to ~10 years service life.
• Sealed for Weather & Dust — IP-rated housing, OE-spec materials and process.
• Stable Factory Signal — 433 MHz BMW protocol, no clashes with other vehicle modules.

Vehicle Fitment

G-Chassis (2018+): G20, G21, G22, G23, G26, G30, G31, G32, G11, G12, G14, G15, G16, G01, G02, G05, G06, G07

F-Chassis (2012-2019): F20, F21, F22, F23, F30, F31, F32, F33, F36, F10, F11, F06, F07, F12, F13, F25, F26, F15, F16

Series: 1 / 2 / 3 / 4 / 5 / 6 / 7 Series, X1, X3, X4, X5, X6, X7

Send your VIN to confirm chassis code before ordering.

Variant Options

• G-Chassis OEM (4× Sensors) — for G-platform BMWs (2018+).
• F-Chassis OEM, Logo-Deburred (4× Sensors) — for F-platform BMWs (2012-2019); logo lightly removed for export markets.
• F-Chassis Branded (4× Sensors) — for F-platform BMWs with full BMW marking retained.

Specs

• Frequency: 433 MHz (BMW factory protocol)
• Position: Internal — valve-mounted
• Sensor count: 4 per set

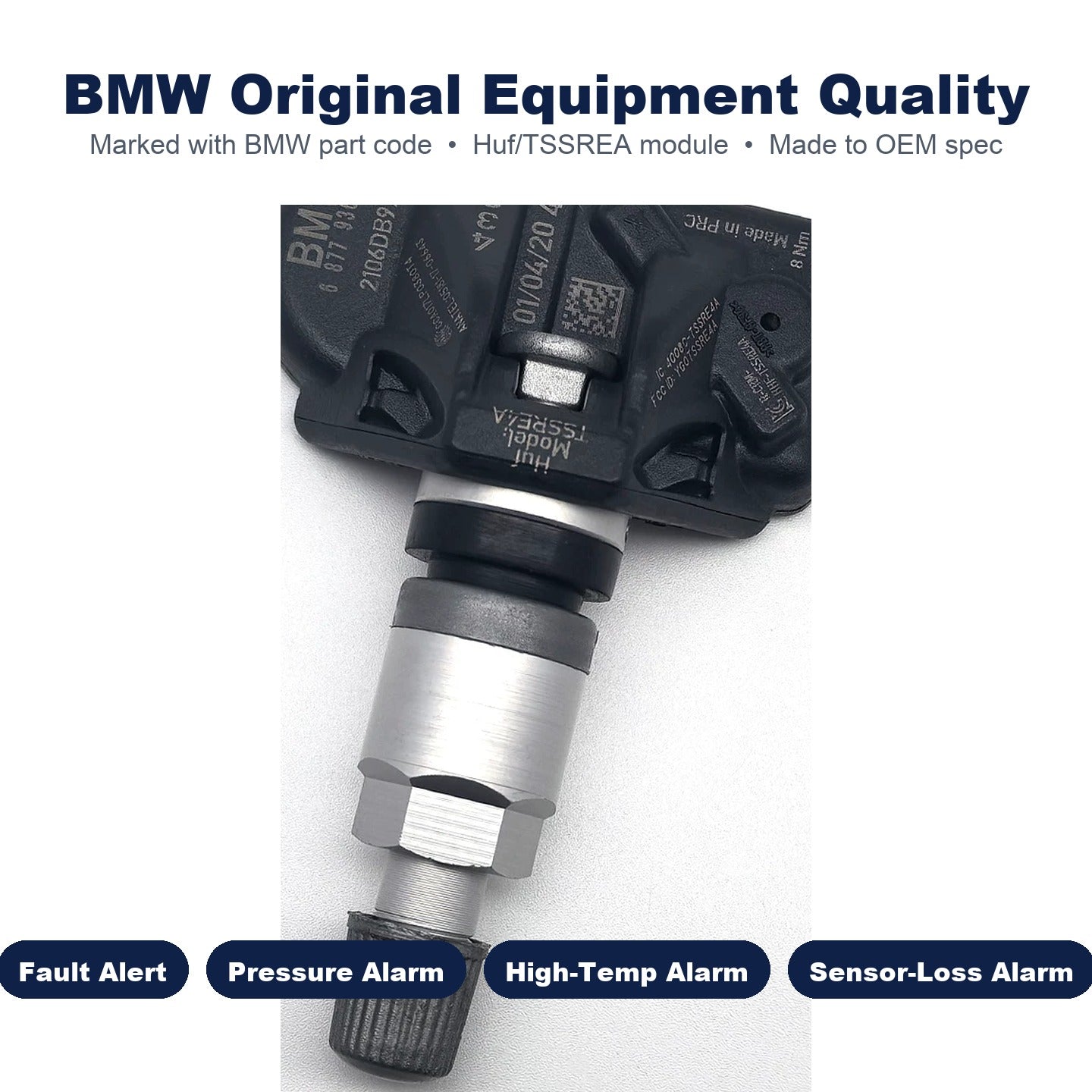

• Module: Huf / TSSREA, OE-grade
• Battery: Automotive-grade lithium
• Warranty: 5 years

Installation

Sensors mount at each wheel valve stem. After fitment, the RDC system auto-pairs on first drive — no laptop, no coding tool. Tyre shop installation takes 15-30 minutes.

Frequently Asked Questions

{“@context”: “https://schema.org”, “@type”: “FAQPage”, “mainEntity”: [{“@type”: “Question”, “name”: “can I replace BMW TPMS sensors myself without going to the dealer”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “Yes — these sensors come pre-coded to your chassis, so once they’re physically mounted and you drive above 20 mph, the RDC module picks them up automatically. No dealer visit, no scan tool, no additional programming step required.”}}, {“@type”: “Question”, “name”: “what BMW models are these TPMS sensors compatible with”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “This set covers both F-chassis and G-chassis BMWs running the 433 MHz RDC system — including F30, F32, F10, F20, G20, G30, G01, G05, and related platforms. If you’re unsure whether your car uses 433 MHz RDC, check your existing sensor or contact us with your VIN.”}}, {“@type”: “Question”, “name”: “why does my BMW show tyre pressure warning instead of actual PSI numbers”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “BMWs with the full RDC system display live per-wheel pressure and temperature on iDrive — but only when all four sensors are present, matched, and communicating correctly. Missing, dead, or mismatched sensors cause the system to fall back to a generic warning. Replacing the full set with these pre-coded sensors restores the individual wheel readout.”}}]}
